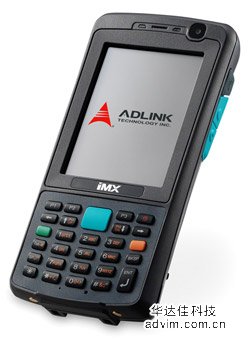

搭配Windows CE 6.0 R3操作系统工业移动计算机手持终端
- 搭配Windows CE 6.0 R3操作系统
- 采用3.5”(240 x 320) TFT-LCD 电阻式触摸屏，在阳光下仍可清晰阅读
- 内置500万像素照相功能以及搭配30万像素的前镜头，可以支持自动对焦、可调式闪光灯
- 3.7V 3000mAh可充式锂电池，提供并维持长效的使用时间，搭配专用座充
- 整合了Wi-Fi、蓝牙功能、GSM、快速定位的GPS以及AGPS
- 内建高性能一维/二维条形码扫描仪，让数据可轻松读取并传输到指定位置
- 通过P65防水与防尘等多项加固性产品测试，以及1.5m摔落测试
|
|
产品规格：
|
|
| Dimensions (L x W x T) |
162 x 80 x 30.5 (mm) / 6.4 x 3.1 x 1.2 (inch) |
| Weight |
Less than 380g (standard battery included) |
| Keypad |
28 Numeric push keys + 4 side push keys |
| Expansion Memory |
microSD, supporting SDHC up to 32G |
| SIM Card |
One SIM Card slot |
|
| |
|
|
| CPU |
Marvel PXA310 @ 806 MHz |
| Operating System |
Windows CE 6.0 Professional R3 |
| Memory |
512 MB NAND Flash Memory / 512 MB DDR RAM |
| Operating Interface |
USB1.1 Host, USB 2.0 Client |
|
| |
|
|
| Audio |
Speaker, mic, 3.5mm headphone slot, bluetooth headphone |
| Indication |
Vibration reminding and LED display |
|
| |
|
|
| Operating Temperature |
-10°C~50°C |
| Storage Temperature |
-20°C~60°C |
| Humidity |
5% ~ 95% (no condensation) |
| Electrostatic |
±12KV (air discharge) / ±8KV (direct discharge) |
|
订购指南：
| IMX-9172 |
Rugged Handheld Device, 2D, GSM, Marvell, WinCE 6.0, BT/WiFi, GPS, 3000mAh |
| IMX-9171 |
Rugged Handheld Device, 1D, GSM, Marvell, WinCE 6.0, BT/WiFi, GPS, 3000mAh |
| IMX-9173 |
Rugged Handheld Device, 1D, RFID, Marvell, WinCE 6.0, BT/WiFi, GPS, 3000mAh |
| IMX-1000 |
Charging Cradle |
|
|
