系統处理器:6th Generation Intel® CoreTM Processors, BGA 1356
Intel® CoreTM i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz, 15W
Intel® CoreTM i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
Intel® CoreTM i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W
内存:4GB/8GB Memory Onboard Dual Channel DDR4 2133MHz
BIOS Insyde SPI 128Mbit
显示板载显示Intel® HD Graphics GT Series
显示接口:1 x VGA,1 x HDMI
VGA: resolution up to 2560x1600 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz
存储1 x 2.5" SATA 3.0 Drive Bay
扩充插槽:1 x Full-size Mini PCIe (PCIe/USB),1 x Half-size Mini PCIe (PCIe/mSATA)
声卡板载声卡Realtek ALC888 5.1-channel
网口:1 x Intel® I210AT PCIe (10/100/1000Mbps),1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
LED 指示灯:1 x Power LED,1 x HDD LED
看门狗Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
电源类型Wide Range 15~36V
接口DC Jack
操作系統:Windows 7 (32/64-bit),Windows 8.1 (64-bit),Windows 10,WES 7,WE8S
机构结构:Aluminum + Metal Aluminum
整合:Wall/VESA/DIN Rail Mount

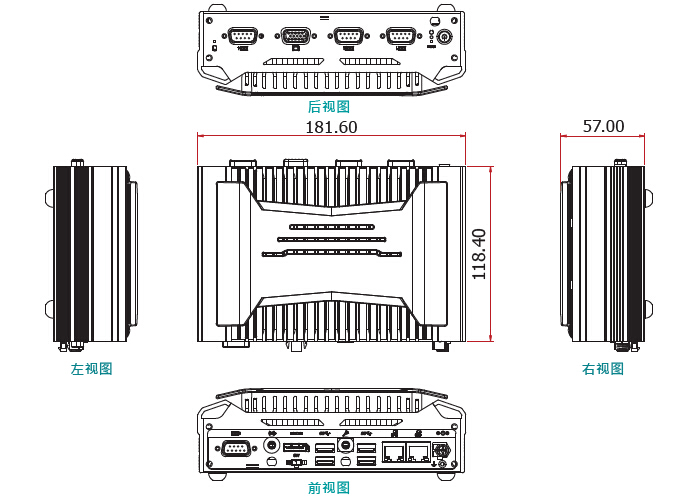

尺寸: (W x H x D) 181.6mm x 57mm x 129.5 mm
重量:1.1 Kg
环境工作温度:0 to 60°C (SSD/mSATA) 0 to 45°C (HDD)
存储温度:-20 to 85°C
相对溼度:5 to 95% RH (non-condensing)
标准及认证冲击测试Operating: 3G, 11ms
Non-Operating: 5G, 11ms
抗振动测试Operating: Random 5~500Hz, IEC68-2-64 (3G) (SSD/mSATA), IEC68-2-64 (0.5G) (HDD)
Non-Operating: Sine 10~500Hz, IEC68-2-6 (3G) (SSD/mSATA), IEC68-2-6 (1G) (HDD)
