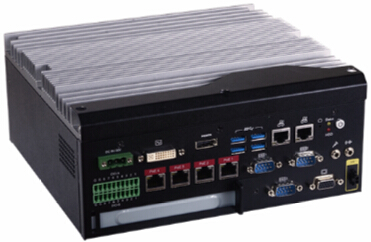

产品特点:
- 第六代/第七代Intel® Core™及Intel® Q170
- 支持 DDR4 SODIMM 高达32GB
- 三个独立显示: 1 VGA + 1 DVI/HDMI + 1 HDMI/DP
- 支持 4 PoE G网口 及2 Intel GbE
- 1个扩充插槽
- 2 Mini PCIe slots 支持 mSATA 及 Wi-Fi 模块
- 2x 2.5" SATA 3.0 存储
- 支持2 Mini PCIe 可用于无线WIFI
- 丰富接口: 3 COM, 4 USB 3.0,8GPIO
- 宽压输入：9~36V DC
-
- 产品规格：
-
处理器
- 6th/7th Generation Intel® Core™ Processors, LGA 1151 Socket
- Intel® Core™ i7-6700TE, Quad Core, 8M Cache, 2.4GHz (3.4GHz), 35W
- Intel® Core™ i5-6500TE, Quad Core, 6M Cache, 2.3GHz (3.3GHz), 35W
- Intel® Core™ i3-6100TE, Dual Core, 4M Cache, 2.7GHz, 35W
- Intel® Core™ i7-7700T, Quad Core, 8M Cache, 2.9GHz (3.8GHz), 35W
- Intel® Core™ i5-7500T, Quad Core, 6M Cache, 2.7GHz (3.5GHz), 35W
- Intel® Core™ i3-7101TE, Dual Core, 3M Cache, 3.4GHz, 35W
内存
Two 260-pin SODIMM up to 32GB
Dual Channel DDR4 1866/2133MHz
控制器
Intel® HD Gen 9 Graphics
特性
OpenGL 5.0, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
显示器
1 x VGA
1 x DVI (DVI-D signal)/HDMI (HDMI available upon request)
1 x HDMI/DP (DP available upon request)
1 x HDMI/DP (DP available upon request)
VGA: resolution up to 1920x1200 @ 60Hz
DVI-I: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz
DP: resolution up to 4096x2304 @ 60Hz
三重显示
VGA + DVI (DVI-D signal) + HDMI
VGA + DVI (DVI-D signal) + DP
VGA + 2 HDMI
VGA + HDMI + DP
内插
2 x 2.5" SATA 3.0 Drive Bay (RAID 0/1)
界面
1 x Full-size Mini PCIe (PCIe/USB)
1 x Half-size Mini PCIe (USB/mSATA)
1 x PCI (EC510-SD)
1 x PCIe x16 (EC511-SD)
控制器
1 x Intel® I211AT PCIe (10/100/1000Mbps)
4 x Intel® I210IT PCIe (10/100/1000Mbps)
1 x Intel® I219V with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)
指示灯
1 x Power LED
1 x HDD LED
以太网络
6 x GbE (RJ-45) or
2 x GbE (RJ-45) + 4 x PoE GbE (RJ-45) (supports IEEE 802.3af, 15.4W per port)
串口
2 x RS-232/422/485 (DB-9) (RS-232 with power)
1 x RS-232/422/485 (DB-9)
显示
1 x VGA
1 x DVI (DVI-D signal)/HDMI (HDMI available upon request)
1 x HDMI/DP (DP available upon request)
音源
1 x Line-out
1 x Mic-in
按键
1 x Power Button
1 x Reset Button
看门狗定时器
System Reset, Programmable via Software from 1 to 255 Seconds
支持操作系统
Windows 7 (32/64-bit)
Windows 10
Windows 8.1 (64-bit)
运作温度
0 to 50°C (SSD or mSATA-mini, with 0.7m/s air flow)
相对湿度
5 to 95% RH (non-condensing)
尺寸 (宽 x 高 x 深)
235mm x 102.5mm x 222mm
冲击测试
Half sine wave 3G, 11ms, 3 shock per axis
|
|
