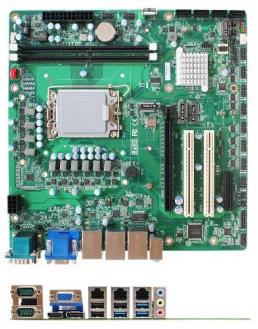

| SYSTEM |
| MB FORM FACTOR |
Micro-ATX |
| CPU |
Intel® LGA1700 12/13/14th Gen Socket Processor (Formerly Alder Lake-S, TDP 125W) |
| CHIPSET |
Intel® H610/H610E |
| MEMORY |
2 x DDR4 3200MHz Dual Channel U-DIMM, up to 64GB |
| BIOS |
AMI Flash ROM |
| WATCHDOG TIMER |
255 Levels |
| SECURITY |
TPM2.0 (Optional) |
| DIMENSION (W X D) |
244.0 (W) x 244.0(D) mm (9.6" x 9.6") |
| OS SUPPORT |
Windows® 11 (64bit)
Windows® 10 (64bit)
Linux |
| POWER |
| POWER REQUIREMENT |
ATX Power Supply |
| POWER ON MODE |
AT / ATX |
| CONNECTOR |
24+8-pin ATX PWR |
| DISPLAY |
| GPU |
Intel® UHD Graphics |
| DP |
1 x DP1.4 (Max Resolution: 7680 x 4320@60Hz) |
| HDMI |
1 x HDMI 2.0 (Max Resolution: 4096 x 2304@60Hz) |
| VGA |
1 x VGA (Max Resolution: 2560 x 1600 @60Hz) |
| MULTIPLE DISPLAY |
Support 3 Displays |
| AUDIO |
| CODEC |
Realtek Audio Codec |
| Line-in |
1 x Audio Jack for Line-In |
| Line-out |
1 x Audio Jack for Line-Out |
| MIC-in |
1 x Audio Jack for MIC-In |
| LAN |
| ETHERNET |
2 x RJ45 for Intel® I226-V 2.5GbE
1 x RJ45 for Intel® I219-V GbE |
| USB PORT |
| USB |
3 x USB 3.2 Gen 1x1 (5Gbps, Formerly USB 3.1 Gen 1)
3 x USB 2.0
Internal Header for 4 x USB 2.0
Internal USB Type A (Vertical) for 1 x USB 2.0 |
| SERIAL PORT |
| COM |
2 x DB-9 for RS-232/422/485
Internal Header for 8 x RS-232 |
| INTERNAL I/O |
| GPIO |
16-Bit |
| SMBUS |
Yes |
| FAN |
1 x CPU Fan Header (Smart Fan)
2 x System Fan Header |
| ADDITIONAL |
1 x Chassis Intrusion
1 x FP_Audio
1 x PS/2 |
| STORAGE |
| SATA |
4 x SATA III |
| EXPANSION |
| M.2 |
1 x M-Key 2242/2280 (PCIe x4 Gen.3 interface, Co-lay PCI-Ex4)
1 x M-Key 2242/2280 (SATA interface, Co-lay SATA4)
1 x B-Key 3042/3052 (USB 3.2/USB 2.0) for 4G/5G Module
1 x E-Key 2230 (CNVi/PCIe x1/USB2.0) Support WiFi/BT Module |
| PCIe |
1 x PCIe x16 (Gen.4)
1 x PCIe 3.0 x4
2 x PCI |
| SIM |
1 x SIM Card Slot |
| ENVIRONMENT & CERTIFICATION |
| SHOCK |
15G, 11ms duration |
| VIBRATION |
1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE |
-10°C ~ 60°C (14°F ~ 140°F) |
| STORAGE TEMPERATURE |
-20°C ~ 70°C (-4°F ~ 158°F) |
| OPERATING HUMIDITY |
10 ~ 90% Relative Humidity, Non-condensing |
| CERTIFICATION |
CE/FCC Class A
LVD |
| ESG DECLARATION |
EU RoHS
China RoHS
REACH |
